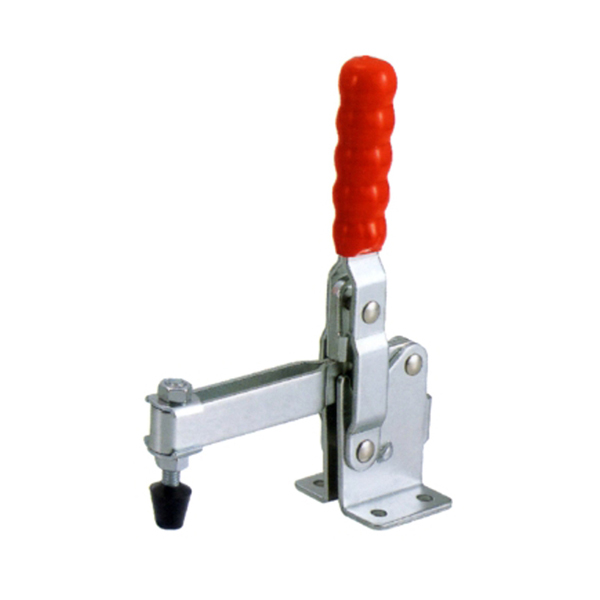

GH12205 Vertical Toggle Clamp

  • Item Type: GH12205
  • Material: Steel
  • Finish: Zinc plated
  • Holding Capacity: 182Kg
  • Weight: 620g
  • Bar opens: 101°
  • Handle opens: 57°
  • Plastic cover handle for easy, safe and comfortable operation
  • Widely used on sealing chambers, lids, machine operation, welding, jigging, repairing, electronic equipment assembly, etc

Your Premier Vertical Toggle Clamps Manufacturer

Vertical toggle clamps are one of the most popular types of toggle clamp among engineering and woodwork manufacturing because of its versatility. These toggle clamps can enable the users to apply even low effort force in creating high effort clamping force.Also, vertical toggle clamps can hold even a huge amount of pressure. They are also known as the vertical hold down or vertical handle toggle clamps because their handles are vertical.

How vertical toggle clamp works

Vertical toggle clamps work through a combination of pivot pins and levers that are linked together. In applying a clamping force, the lever is being used from which the lever is pressed down to the clamping plate. Then, this clamping plate is pushed against the workpiece. Vertical toggle clamp cannot be unlocked as long as the lever is not yet released.

Essential Features of a Vertical Toggle Clamp

Many of the woodwork manufacturers are switching to vertical toggle clamps because of their noted advantages.
Wide Selection of Handle Lengths and Sizes. Woodwork makers have nothing to worry about the sizes or handle lengths they prefer while working since it has a wide range of selection.

Seamless Adjustment

Vertical toggle clamps provide a seamless and automatic adjustment on the clamping height with the use of persistent clamping force.

Complete Flexibility

Using complete flexibility, the worker can easily position the base, clamp arm and handle. Also, it is made possible for configuration so that it can be more flexible according to its specs.

Longer Service Life

Vertical toggle clamps are created with the use of best quality sturdy sheet steel to provide longer service life to the users.
Easy to Use. Since vertical toggle clamp can be operated with lesser force, it can actually save time and energy.

Corrosion Resistant

Vertical toggle clamps are specifically manufactured with zinc plated materials, their linkage and other body parts are free from corrosion.

Comfort

Vertical toggle clamp manufacturers see to it that the users can experience comfort while on work that is why the clamps’ hand grips are produced with cushioned rib profile. Thus, some may apply ergonomic vinyl.

Other Notable Features of Vertical Toggle Clamp

Apart from the above vertical toggle clamp features, there are more amazing benefits that users can take advantage of:
Pivot joints are specifically fitted with stainless steel or hardened steel rivets so that accuracy can be maintained
Best quality materials are used
Safe to use
Provides strength and rigidity
Easy and fast installation
Adaptability to workpieces with different heights

If you are looking for vertical toggle clamps and have detailed requirement ideas in mind, roche design&Sales team will be here to help you. Through our 12 hours rapid response services from our 24/7 sales and tech support team, and excellent after-sales service, we will be your expert vertical toggle clamps design partner in China. At roche we can answer any vertical toggle clamps tech questions that you may have.

Roche is a professional vertical toggle clamps manufacturer in China, Our vertical toggle clamps have been sold to many companies all over the world, we would like to find the stable agent in the different countries and areas.

If you need the cost for vertical toggle clamps, we also can supply drawing idea to you for checking and thinking. Welcome to inform us your requirements, then we will reply you within 24 hours.

Product ModelGH12205 Vertical Toggle Clamp
MaterialSteel
FinishZinc Plated
Holding Capacity182Kg
Standard or NonstandardStandard
ApplicationMachine operation, welding, jigging, repairing, electronic equipment assembly
Delivery TimeLess 3000 pcs in stock,15-30 working days after received the deposit
Sample ChargeIn stock sample is free(But the freight will be covered by your side)
PaymentT/T, L/C,Paypal, Alipay are avaliable
PackagePE bag+ blank carton (Export standard )
MOQNO MOQ,WE SUPPORT YOUR SAMLL BUSINESS
