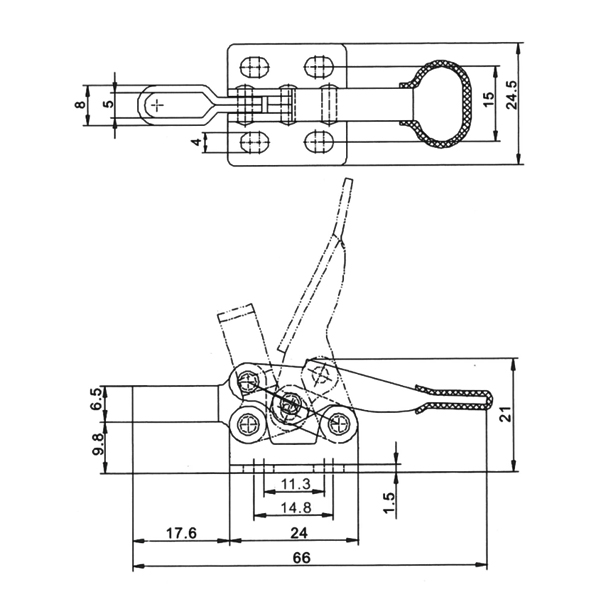

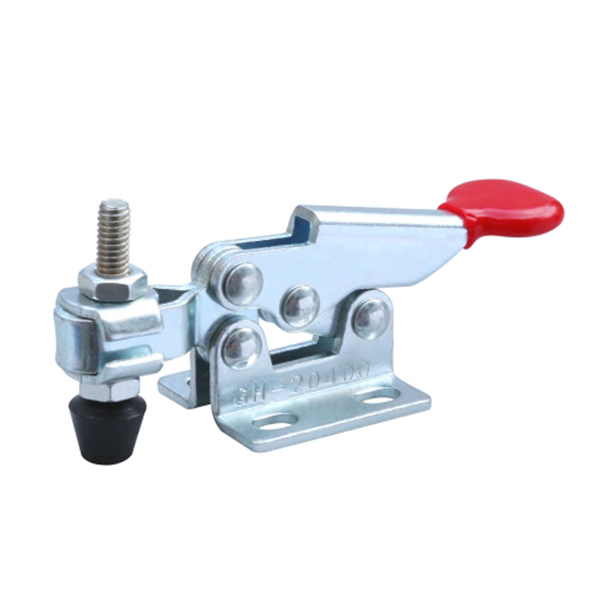

GH20400 Horizontal Toggle Clamp
- Item Type: GH20400
- Material: Steel
- Finish: Zinc plated
- Holding Capacity: 20Kg
- Weight: 32.6g
- Bar opens: 55°
- Handle opens: 60°
- Plastic cover handle for easy, safe and comfortable operation
- Widely used on sealing chambers, lids, machine operation, welding, jigging, repairing, electronic equipment assembly, etc
Your Premier Horizontal Toggle Clamps Manufacturer
Roche horizontal toggle clamp is similar to a vertical clamp. However, the only difference is that they are differently aligned. With horizontal toggle clamp, the handle as well as securing arm begin semi-vertical. Once the handle moves toward the working space, the arm locks into place. This is popularly utilized if there is a height limitation because of the machinery. What is more, they should be mounted on a table.
How horizontal toggle clamp works
Roche horizontal toggle clamp works through a connection system of pivots and levers. The fixed length levers, linked using pivot pins, supply the stroke and clamping pressure. This action as lock point that is a linkage and fixed stop, when in the lock position, a clamp doesn’t unlock except the linkage is released or moved.
Essential Features of Horizontal Toggle Clamp
A horizontal toggle clamp is one of the many types of toggle clamp. It is beneficial due to many benefits such as:
Save Time: The clamping, as well as the release, is obtained in just a matter of seconds. This provides a remarkable time saving for each cycle.
Easy to Integrate: With this tool, no extra accurate machining, and slotting required while utilizing this type of clamp in any tooling.
Durability: All essential components are made of durable materials as well as zinc plated providing adequate wear and corrosion resistance making sure longer working life.
Low Maintenance: A horizontal clamp is almost maintenance free. Occasionally a couple of drops of lubricant is what you need to keep in an excellent working condition.
Cost Saving: A tooling cost is lessened as tool style, and tool making becomes simple. Minimized cycle time decreased with low maintenance. Reduced production expense by boosting productivity, a horizontal toggle action clamp opposed to other clamp utilizes friction pressure to effect locking conditions between the surfaces on the bar as well as the handle. A horizontal toggle action clamp offers a more consistent clamping point and is available in stainless steel material for corrosive and outdoor applications.
Roche as a leading horizontal toggle clamp manufacturers, roche always not let you down, as we trying to build up our brand which is associated the feedbacks from you, so your satisfied is our motivation. If you need any help in horizontal toggle clamp, please contact with roche now.
|Product Model||GH20400 Horizontal Toggle Clamp|
|Standard or Nonstandard||Standard|
|Application||Machine operation, welding, jigging, repairing, electronic equipment assembly|
|Delivery Time||Less 3000 pcs in stock,15-30 working days after received the deposit|
|Sample Charge||In stock sample is free(But the freight will be covered by your side)|
|Payment||T/T, L/C,Paypal, Alipay are avaliable|
|Package||PE bag+ blank carton (Export standard )|
|MOQ||NO MOQ，WE SUPPORT YOUR SAMLL BUSINESS|
